busbar insulator is drum,made of DMC,used for low voltage application(660V-4500V),such as distribution box,switchgear,inverter and green power and so on.
CE,SGS,ROHS certificate for drum insulator.

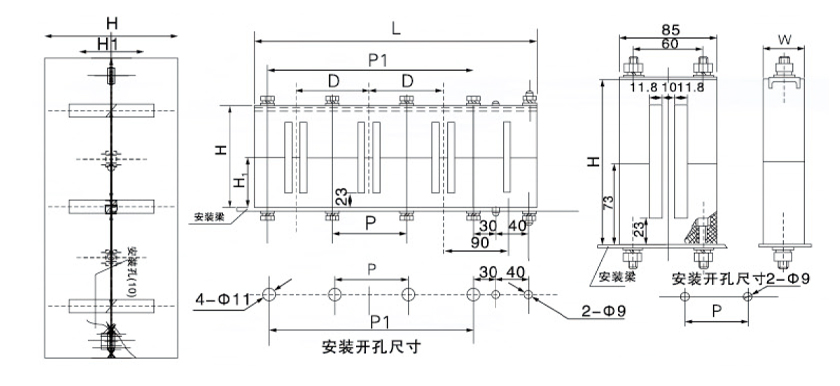

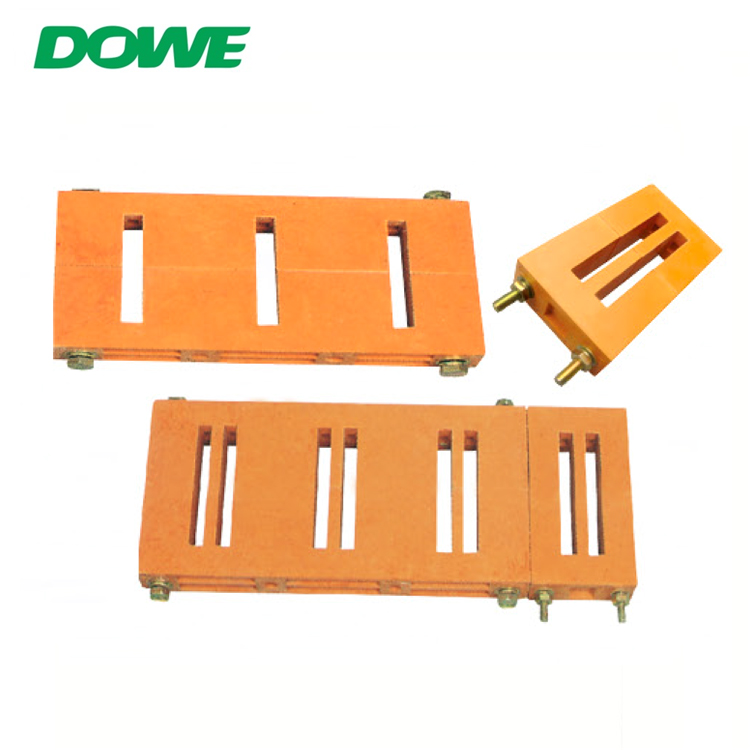

| Product name | Product model | length(L) | thickness(W) | Phase number | apart(D) | pitch-row(P) | pitch-row(P1) |
| Insulated busbar frame | PMJ4-3Single row | 255mm | 36mm | three-phase | 80mm | 80mm | 220mm |
| Insulated busbar frame | PMJ4-3雙排 | 315mm | 36mm | three-phase | 100mm | 100mm | 280mm |
| Insulated busbar frame | PMJ4-4 Single row | 320mm | 36mm | four-phase | 80mm | 80mm | 220mm |
| Insulated busbar frame | PMJ4-4 Double row | 380mm | 36mm | four-phase | 100mm | 100mm | 280mm |
| Insulated busbar frame | PMJ5B-3x3 | 385mm | 40mm | four-phase | 120mm | 120mm | 340mm |
| Insulated busbar frame | PMJ6B-3x3 | 460mm | 40mm | three-phase | 140mm | 140mm | 420mm |
| Insulated busbar frame | PMJ7B-3x3 | 460mm | 40mm | three-phase | 150mm | 150mm | 420mm |
| Insulated busbar frame | PMJ8B-3x3 | 505mm | 40mm | three-phase | 175mm | 175mm | 475mm |
| Zero clamp | PMJ4-N Single row | 65mm | 36mm | N each other | 40mm | ||
| Zero clamp | PMJ4-N Double row | 85mm | 36mm | N each other | 60mm | ||
| Zero clamp | PMJ4-N Three rows | 135mm | 40mm | N each other | 100mm | ||
| Zero clamp | PMJ4-N Four rows | 158mm | 40mm | N each other | 120mm |
| 規(guī)格 | 6x60 | 6x80 | 8x80 | 8x100 | 10x60 | 10x80 | 10x100 | 10x120 | 12x120 | 10x125 | 12x125 |
| 高(H) | 110mm | 130mm | 130mm | 150mm | 110mm | 130mm | 150mm | 170mm | 170mm | 175mm | 175mm |
